HIPOL Lapping Paste and Powder
Lapping is a process, in which two surfaces are rubbed together with an abrasive between them. Lapping Paste is ideally suitable for hand lapping and polishing especially in intricate cavities where continuous feed of abrasive is not desired or not possible. The abrasive particles in the paste form are of blocky shape which helps in maximizing cutting efficiency and attain required finish. With the aid of years of understanding of this domain, we render the best quality of Diamond Pastes. By using modern machinery, the Hipol diamond pastes as per the industry laid norms.
HIPOL Lapping Paste and PowderINR180.00
Features
Diamond Lapping compounds, particularly suited to the rapid polishing of all hard materials, are used extensively in the manufacture of precision components, tungsten carbide dies, precision gauges, optical flats and lenses etc.
DIACONE HIPOL (High Polish) Diamond Paste which is a Diamond Lapping compound is Oil Soluble version is designed to disperse in thin paraffin penetrating oils and thin cutting oils. Only a small amount of thinner is required to give considerable covering properties.

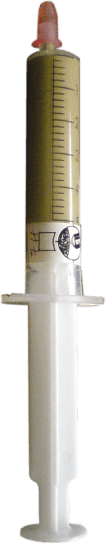

HIPOL Diamond paste are available in three concentrations which are easily recognized by colour coding for each grade and are supplied in transparent syringes which helps you determine what amount of paste should be used for particular process and how much further paste is available in the syringe this helps further in ease of handling, unnecessary wastages and utmost economy.
Tips: Use the paste as sparingly as possible. Initially, apply just sufficient thinner to spread the paste over the working surface and then subsequently as much as is required to maintain lubrication.
About HIPOL
Diamond Compound is manufactured from pure accurately graded Diamond Powder and evenly distributed in chemical base to ensure quick cutting action. HIPOL
is developed to impart the very finest degree of surface finish to a variety of materials and is used for finishing of Plastic moulds, Tungsten Carbide Wire Drawing Dies, Cemented Carbide cutting tools, tips of micrometer, Watch cases, Calendar rolls, Metallurgical and Geological Specimens.
In fact it is most economical method for fine grinding lapping and polishing of variety of hard metals. HIPOL will assist you to solve your surface finishing problems, to improve precision and to lower your cost.
HIPOL has got self-lubricating properties which enables it to absorb more freely abraded particles and making it suitable for production run.
Each grade of Compound is of different color thus permitting immediate identification of grade. It is guaranteed to give uniform performance on surface finishing operation at all times.
HIPOL is the answer for your unsolved finishing problem.
Application / Comparative Standard Equivalents Chart for Diamond Pastes and Powders
Diamond powder is graded mechanically by sieves into mesh and then chemically into micron sizes. Calibration of mesh is by the number of holes the sieve has per linear inch. One micron is roughly measured to be one part in 25,000 of an inch.
| APPLICATION | GERMAN EQUIVALENTS | MICRON SIZE | MESH SIZE | HIPOL PASTE/POWDER | |
|---|---|---|---|---|---|
| PRODUCT SPECIFICATION | PASTE COLOR CODE | ||||
| IMAGE REFLECTIVE FINISH Polish on Hard Metals/Gems | D-0.7 | 0.5/1 | 50000 / 25000 | HP | White |

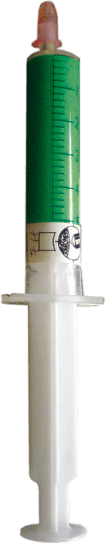

| SUPER FINISH Polish on Mettalographic Specimen | D-1 | 1/2 | 25000 / 10000 | HP | Green |
| FINESH HIGH FINISH Polish on Carbide, Steel, Ruby, Sapphire and Plastic Moulds | D-3 | 2/5 | 10000 / 5000 | HP | Yellow |
| INTERMEDIATE FAST Polish on Steel, Carbide, etc. Best general-purpose polishing. | D-7 | 5/10 | 5000 / 1500 | HP | Orange |
| Removal of lines, PRE-Polish on Steel and Lapping of Carbide | D-15 | 10/20 | 1500 / 650 | HP | Blue |
| LIGHT CUTTING, Fast Lapping on Steel, Carbide with good finish. | D-30 | 20/40 | 650 / 350 | HP | Red |
| Fast Stock removal MEDIUM CUTTING, Deep Scratches, Waves, Pre-Polishing on Carbide and Steel Moulds | D-50 | 40/60 | 350 / 250 | HP | Purple |
Study the application Chart and Order.
HIPOL Paste: When a paste is required for intermediate and best general purpose polishing - HIPOL-7 can be selected. HIPOL pastes are available in HIGH(H), MEDIUM(M), and LOW(L) concentration packed in 5cc syringes.

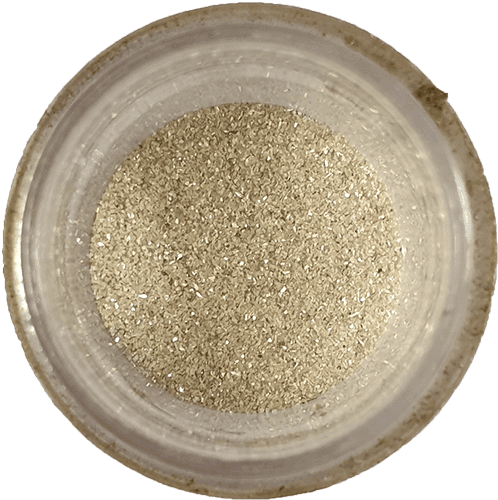

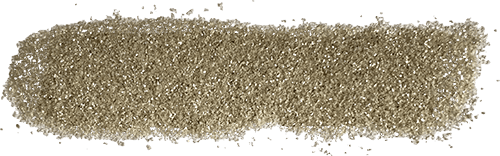

HIPOL Powder: If the above is required in powder form, same can be obtained in 5cts or 10cts packets.
